• Model NO.：KR125ES
• Drilling Way：Rotary
• Type：Crawler
• Torque：125 Kn.M
• Max. Diameter：1800 mm
• Max. Drilling Depth：20 M(Lock), 30 M(Friction Kelly Bar)
• Max. Crowd Pressure：100 Kn
• Max. Crowd Pull：110 Kn
• Main Winch Line Pull：80 Kn
• Operating Height：8000 mm
• Operating Width：3600mm
• Transport Package：Nude Pack
• Specification：32 t
• Trademark：TYSIM
• Origin：Jiangsu, China
• HS Code：8431499900
• Production Capacity：30pieces,Month

Basic Info.

Model NO. KR125ES Drilling Way Rotary Type Crawler Torque 125 Kn.M Max. Diameter 1800 mm Max. Drilling Depth 20 M(Lock)/ 30 M(Friction Kelly Bar) Max. Crowd Pressure 100 Kn Max. Crowd Pull 110 Kn Main Winch Line Pull 80 Kn Operating Height 8000 mm Operating Width 3600mm Transport Package Nude Pack Specification 32 t Trademark TYSIM Origin Jiangsu, China HS Code 8431499900 Production Capacity 30pieces/Month

Product Description

Technical Specification

Type	KR125ES
Torque	125 KN.m
Max. diameter	1600 mm
Max. drilling depth	20m(Lock)/ 30 m(Friction kelly bar)
Speed of rotation	8~30 rpm
Max. crowd pressure	100 kN
Max. crowd pull	110 kN
Main winch line pull	80kN
Main winch line speed	60m/min
Auxiliary winch line pull	60 kN
Auxiliary winch line speed	60 m/min
Stroke(crowd system)	2000 mm
Mast inclination(lateral)	±3°
Mast inclination(forward)	3°
Max. operating pressure	34.3 MPa
Pilot pressure	3.9 MPa
Travel speed	3 km/h
Traction force	220 kN
Operating height	8000 mm
Operating width	3600mm
Transport height	3425 mm
Transport width	3000 mm
Transport length	9761mm
Overall weight	32 t

Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.

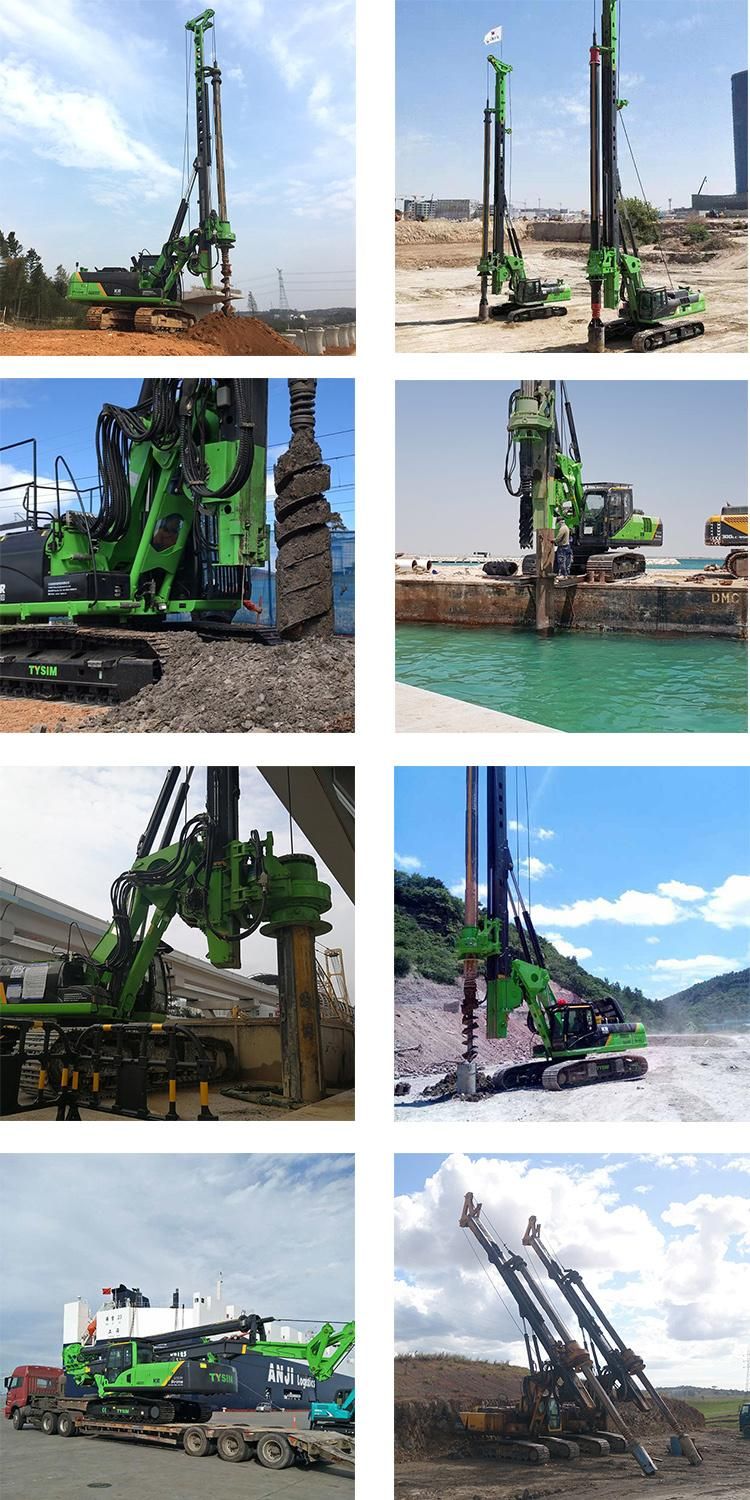

3. Our rotary drilling rigs have been sold to more than 20 counstries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.

FAQ

Q1: What is the Warranty of the Rotary Drilling Rig?

The warranty period for new machine is half a year or 1000 working hours, whichever comes first will be applied.

Please contact with us for detailed Warranty Regulation.

Q2: What's your service ?

We can offer professional technical support and good after-sale service to you.

Modification methods will be different according to different models and configurations of your owned excavators.

Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.

Before modifying, you need to confirm technical specification.
