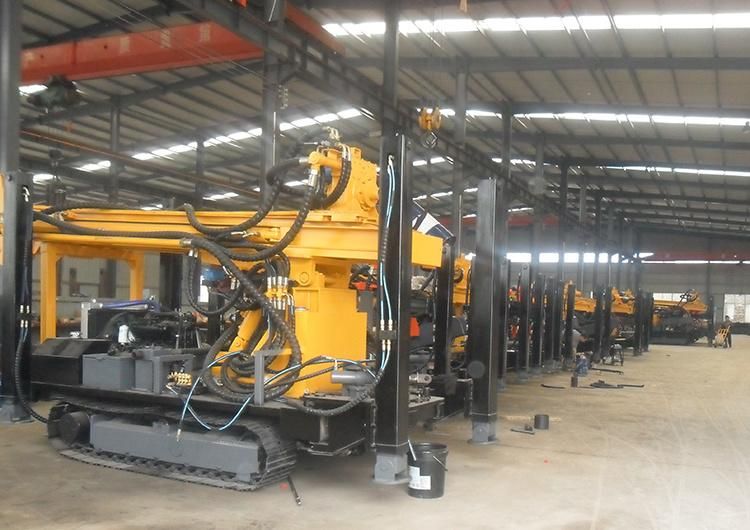

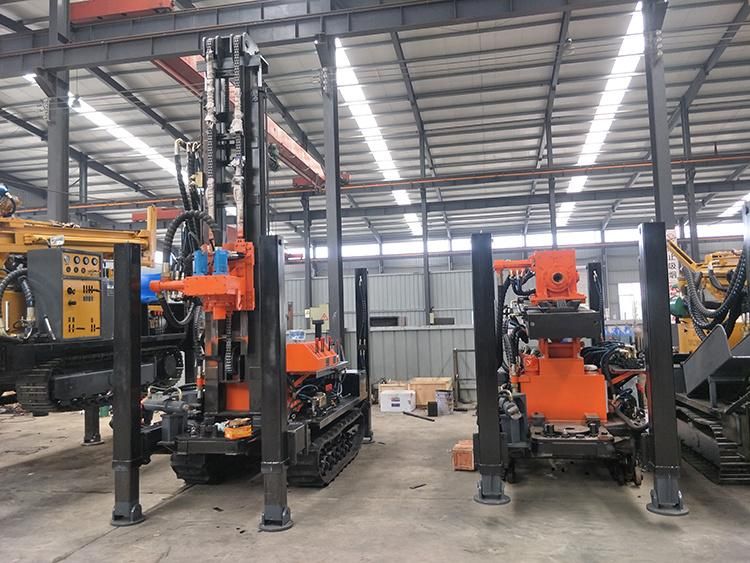

Rubber Crawler Mounted Rotary Well Drilling Machine / 180m Water Well Drilling Rig
Henan Yugong Machinery Co., Ltd.- After-sales Service：Video Technical Support
- Warranty：1 Year
- Certification：CE, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Motor：DC Motor
- Drill Hole Diameter：200-250mm
Base Info
- Model NO.：YG-130,180,200
- Drill Hole Depth：>200m
- Bit Type：Diamond Bit
- Drilling Way：Impactor
- Name：Bore Well Drilling Machine
- Spindle Speed：32-1057r,Min
- Spindle Stroke：600mm
- Max Pull Force：3000kg
- Pull Speed：0.3-1.9m,S
- Rope Diameter：12.5mm
- Rated Load：18t
- Effective Height：6.5m
- Matching Power：42kw
- Keyword：Water Well Drilling Rig Price
- Drilling Depth：500m
- Keyword 2：Drilling Rigs
- Keyword 3：Small Water Well Drilling Machine
- Transport Package：Standard Wooden Cases
- Specification：2900*2560*3300mm
- Trademark：YG,YUGONG
- Origin：Henan, China
- HS Code：8430410900
- Production Capacity：500 Set,Month
Description
Product Description YG-180 YG-200 YG-300 YG-300A YG-400 YG-600 YG-800 The weight(T) 4.5 5.8 9 7 10 12 13 The hole diameter(mm) 140-254 140-305 140-325 140-325 140-350 140-350 140-500 Drilling depth(m) 180 200 300 300 400 600 800 3.4 3.4 6.6 3.4 6.6 6.6 6.6 2.5 2.5 2.5 2.5 2.5 2.5 2.5 30 30 30 30 30 30 30 Equipped capacitor(KW) 55 65-70 84 75.8 92 115 140 Using air pressure(mpa) 1.7-2.5 1.7-3.0 1.7-3.3 1.7-3.0 1.7-3.5 1.7-3.5 1.7-3.5 17-31 17-30 17-35 17-35 17-35 17-35 17-35 Drill pipe diameter(mm) 76 89 76 89 89 102 76 89 102 89 102 108 102 108 114 76 89 102 Drill pipe length(m) 1.5 2.0 3.0 1.5 2.0 3.0 1.5 2.0 3.0 6.0 1.5 2.0 3.0 1.5 2.0 3.0 6.0 1.5 2.0 3.0 6.0 1.5 2.0 3.0 Rig lifting force(T) 15 12 20 16 22 28 35 Swing speed(rpm) 45-65 45-70 55-115 40-70 45-115 45-115 55-115 Swing torque(N.m) 3200-4600 3500-4800 6200-8500 5700-7500 6500-9000 8500-11000 8660-11150 Dimension(mm) 3800*1500*2200 4000*1750*2450 5900*2000*2850 4100*1950*2600 5900*2100*2850 6000*2200*2850 6100*2100*2900
One-time advance length(m)
Walking speed
(km/h)
Climbing angles
(Max.)
Air consumption
(m3/min)
Feature:
1.High drilling efficiency, power provided by 42KW diesel engine
2.High efficiency, large rotary torque
3.Integrated automation equipment,All terrain moves by itself
4.Adopt consummate design, long service life
5.Self loading and unloading,Easy to operating

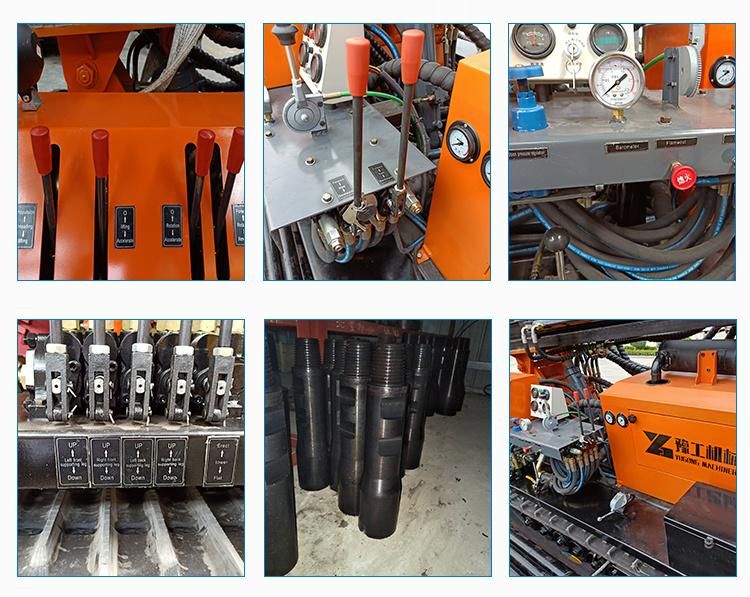

Details:

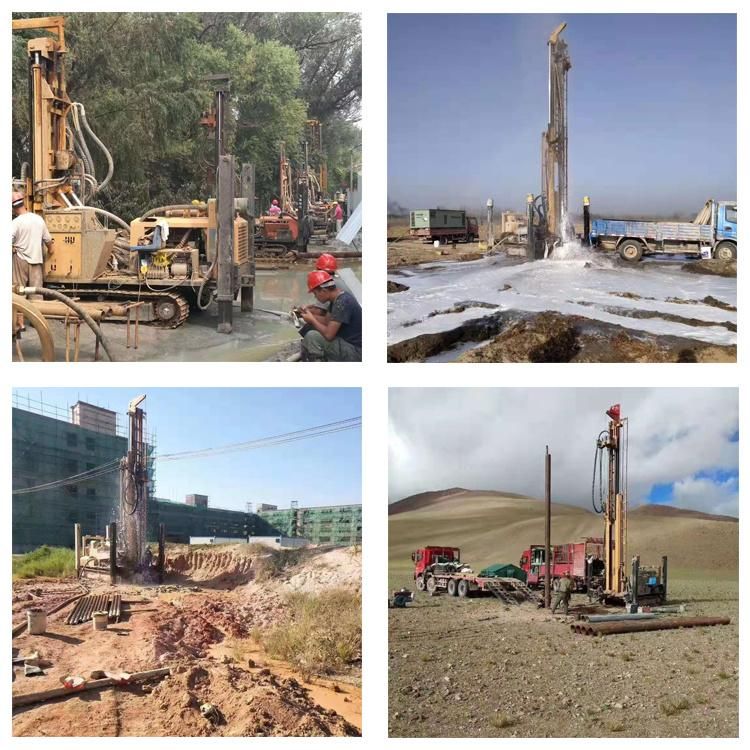

Working Site:
Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
