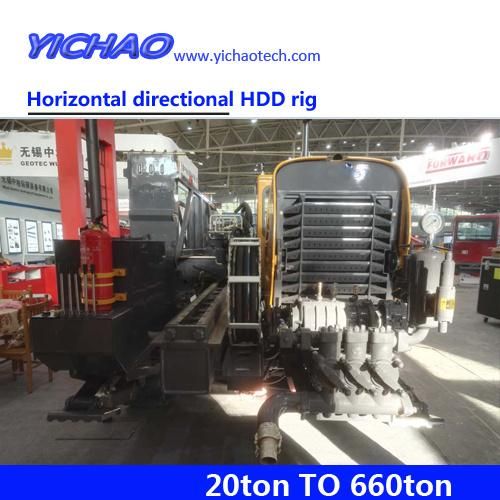

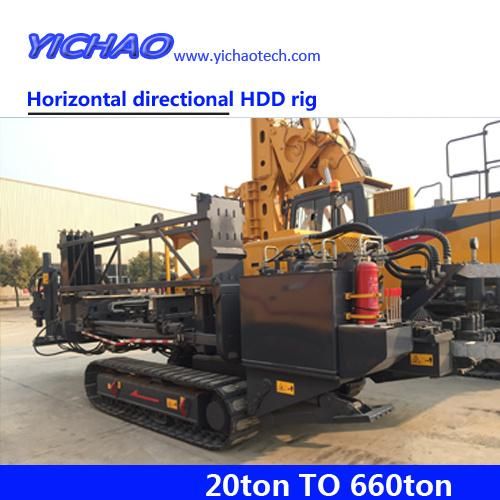

Trenchless Underground Drill Machine Horizontal Directional Drilling HDD Machine (XZ200/XZ320D/XZ320E/XZ400/XZ450PLUS/XZ680A/XZ1000A/XZ2860/XZ3000/XZ6600)
Wuhan Yichao Technology Equipment Co., Ltd.- Condition：New
- Drill Hole Diameter：200-1350mm
- Drill Hole Depth：30-50m
- Bit Type：Cone Bit
- Drilling Way：Rotary
- Type：Crawler
Base Info
- Engine：Cummin.S
- Application 1：Telecom Fiber Laying
- Application 2：Sewage Pipe Laying
- Application 3：Oil Pipe Laying
- Working Type：Trenchless
- Warranty：1 Year
- Local Service：Some Country Available
- Shipping Way 1：45ton Below by Container
- Shipping Way 2：68ton Above by Rollroll
- Transport Package：Bulk
- Specification：Horizontal
- Trademark：YICHAO
- Origin：China
- HS Code：8430691900
- Production Capacity：100,Month
Description
Basic Info.
Engine Cummin.S Application 1 Telecom Fiber Laying Application 2 Sewage Pipe Laying Application 3 Oil Pipe Laying Working Type Trenchless Warranty 1 Year Local Service Some Country Available Shipping Way 1 45ton Below by Container Shipping Way 2 68ton Above by Rollroll Transport Package Bulk Specification Horizontal Trademark YICHAO Origin China HS Code 8430691900 Production Capacity 100/MonthProduct Description
Model:XZ200/XZ320D/XZ320E/XZ400A/XZ450/XZ450 PLUS/XZ680A/XZ1000A/XZ1350/XZ1600/XZ2860/XZ2860 PLUS/XZ3000/XZ6600/XZ13500 horizontal directional drill has more strong structure.| Model | Max torque(N.m) | Engine power(kw) | Max back pull force(kN) | Pipe size(mm*m) |
| XZ200 | 6350 | 119 | 200 | 60*3 |
| XZ320D/XZ320E | 12000 | 153 | 320 | 73*3 |
| XZ360E | 13200 | 154 | 370 | 73/83*3 |
| XZ400 | 14000 | 179 | 400 | 73/83*3 |
| XZ450 | 20000 | 194 | 480 | 89*4.5 |
| XZ450 PLUS | 20000 | 154 | 970 | 89*4.5 |
| XZ680A | 31000 | 239 | 725 | 102*6 |
| XZ680 | 27000 | 250 | 680 | 102*6 |
| XZ1000A | 35000/43000 | 264 | 1000 | 114/127*6 |
| XZ1600 | 75000 | 242x2 | 1650 | 127*6 |
| XZ2000 | 75000 | 242x2 | 2200 | 127*6 |
| XZ2860 | 90000 | 264 | 2860 | 127/140/168*9.6 |
| XZ2860 PLUS | 110000 | 264 | 3600 | 127/140/168*9.6 |
| XZ3000 | 110000 | 298X2 | 3000 | 140*9.6 |
| XZ5000 | 160000 | 394X2 | 5000 | 168*9.6 |
| XZ6600 | 160000 | 565X2 | 6600 | 194*9.6 |
XZ200
Reamer size 200-300mm ,normal land,1 gun can be 150meter,very easy.
Reamer size 400MM,normal land,1 gun 150meter,need good skill.
Reamer reach to 600MM,1 gun can only reach 90 meter.
XZ320D
Reamer 200-300mm,normal land,1 gun can be 400meter.
Reamer 400-500mm,normal land,1 gun can be 250meter.
Reamer 600mm, normal land,1 gun can be 120 meter.
Reamer 600mm above,need good skill to work.
One-gun-distance means the distance of drill bit go from one side and come out from the other size.Please see below explanation.
