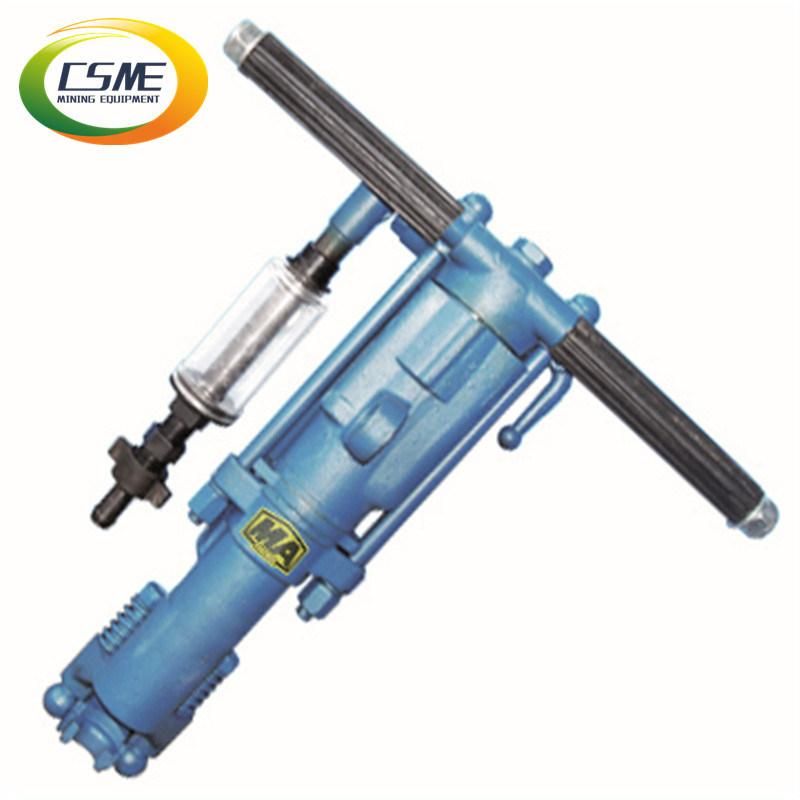

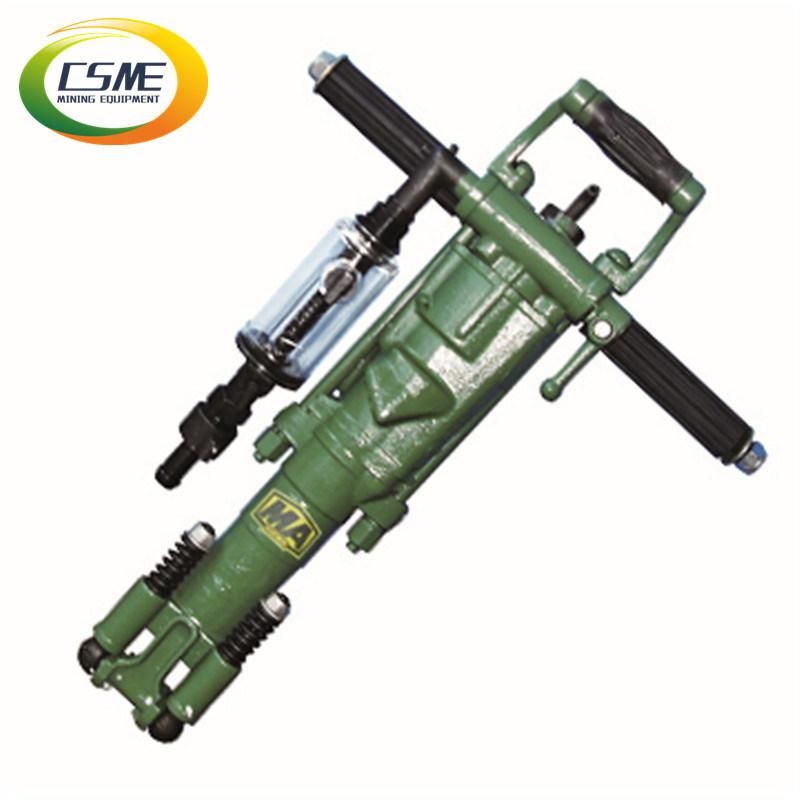

Yt24 Pneumatic Manual Air Leg Rock Drill

Changsha Mining Equipment Co., Ltd.
  • Warranty：6 Months
  • Certification：ISO 9001:2000
  • Condition：New
  • Bit Type：Cone Bit
  • Drilling Way：Rotary
  • Power Type：Pneumatic

Base Info

  • Model NO.：YT24
  • Dimension(L*W*H)：Length:678mm
  • Weight：24kg
  • Specification：Rotary Drilling Rig
  • Trademark：CSME
  • Origin：Changsha, China (Mainland)
  • HS Code：8467190000
  • Production Capacity：5000 Piece,Pieces Per Month

Description

YT24 Pneumatic Rock DrillWeight≈24 kgLength678 mmWorking Air Pressure0.4~0.63 MPaCylinder Diameter70 mmPiston Structure Stroke70 mmDrilling Impact Frequency≥31 HzAir Consumption≤ 66.7 L/sAir Hole Inner Diameter19 mmWater Hole Inner Diameter13 mmShank Size22x108±1 mm  FY200B Oil InjectorOil Reserve200 L Air Leg TypeFT140BFT140DWeight≈15.6 kg≈13.9 kgLength1687 mm1400 mmMax. Extension Length1250 mm965 mmCylinder inner diameter60 mm60 mmYt24 Pneumatic Manual Air Leg Rock DrillYt24 Pneumatic Manual Air Leg Rock DrillYt24 Pneumatic Manual Air Leg Rock DrillYt24 Pneumatic Manual Air Leg Rock DrillYt24 Pneumatic Manual Air Leg Rock DrillYt24 Pneumatic Manual Air Leg Rock DrillYt24 Pneumatic Manual Air Leg Rock DrillYt24 Pneumatic Manual Air Leg Rock DrillYt24 Pneumatic Manual Air Leg Rock DrillYt24 Pneumatic Manual Air Leg Rock Drill
