• Model NO.：DR-160
• Bit Type：Customer
• Drilling Way：Rotary
• Type：Crawler
• After-Sales Service Provided：No Overseas Service Provided
• Color：Customized
• Maximum Torque of Power Head：160kn.M
• Drilling Diamter：500-1800mm
• Drill Depth：40m
• Drill Rod：Kelly Bar
• Chassis Length：4800mm
• Track Width：600mm
• Engine Power：158kw
• Power Head Speed：10-50rpm
• Working State Width：4200mm
• Length of Transport Status：13000mm
• Application：New
• Transport Status Width：2800mm
• Transport Status Height：3550mm
• Transport Package：According to The Customer′s Requirements
• Specification：13000*2800*3550
• Trademark：dingli
• Origin：Shandong, China (Mainland)
• HS Code：8430509000
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. DR-160 Bit Type Customer Drilling Way Rotary Type Crawler After-Sales Service Provided No Overseas Service Provided Color Customized Maximum Torque of Power Head 160kn.M Drilling Diamter 500-1800mm Drill Depth 40m Drill Rod Kelly Bar Chassis Length 4800mm Track Width 600mm Engine Power 158kw Power Head Speed 10-50rpm Working State Width 4200mm Length of Transport Status 13000mm Application New Transport Status Width 2800mm Transport Status Height 3550mm Transport Package According to The Customer′s Requirements Specification 13000*2800*3550 Trademark dingli Origin Shandong, China (Mainland) HS Code 8430509000 Production Capacity 20 Sets/Month

Product Description



Product Details

This pile driver uses a new retractable tracked chassis as a carrier, is equipped with a high-power brand engine and hydraulic system, and is equipped with a new visual control system, which can realize wireless remote driving control. The standard drilling pile is equipped with a maximum drilling depth of 30M, an upgraded drill depth of 40M, a drilling diameter of 500-1800MM, a pile machine body of 360 free choices, and a mast with automatic vertical adjustment function.




Parameter

Product Type	DR-160
Chassis length(mm)	5100
Track width(mm)	6700
Overall height(M)	3.95
Machine weight(t)	36
Maximum drilling depth(M)	45
Drilling diameter(mm)	600-1800
Engine rated power(KW/rpm)	191KW
Maximum torque of power head(N.m)	160000(optionl)
Power head speed rpm	50-70
Power head can be customized	YES
Drill mast	±5
Pitch angle	5
Maximum travel speed of chassis(KM/h)	4
Maximum creep degree of chassis	30
Maximum travel torque(N.m)	61000
Working state width(mm)	3300
Transport status width(mm)	3000
Transport status height(mm)	3950

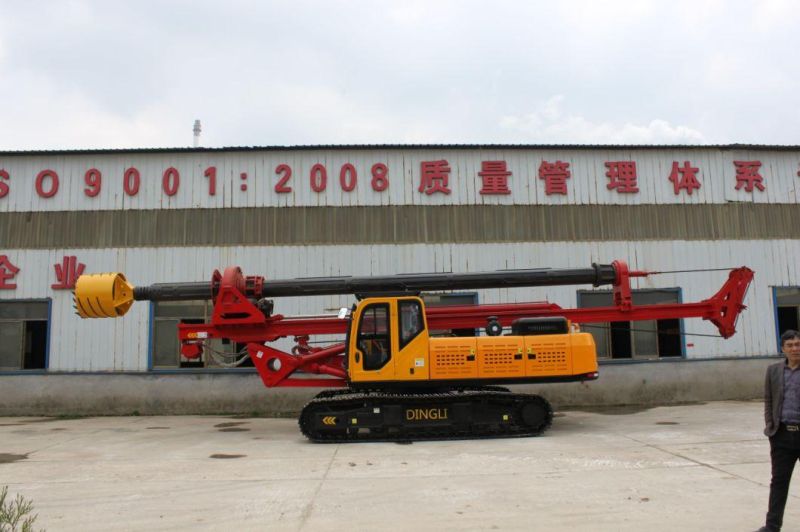

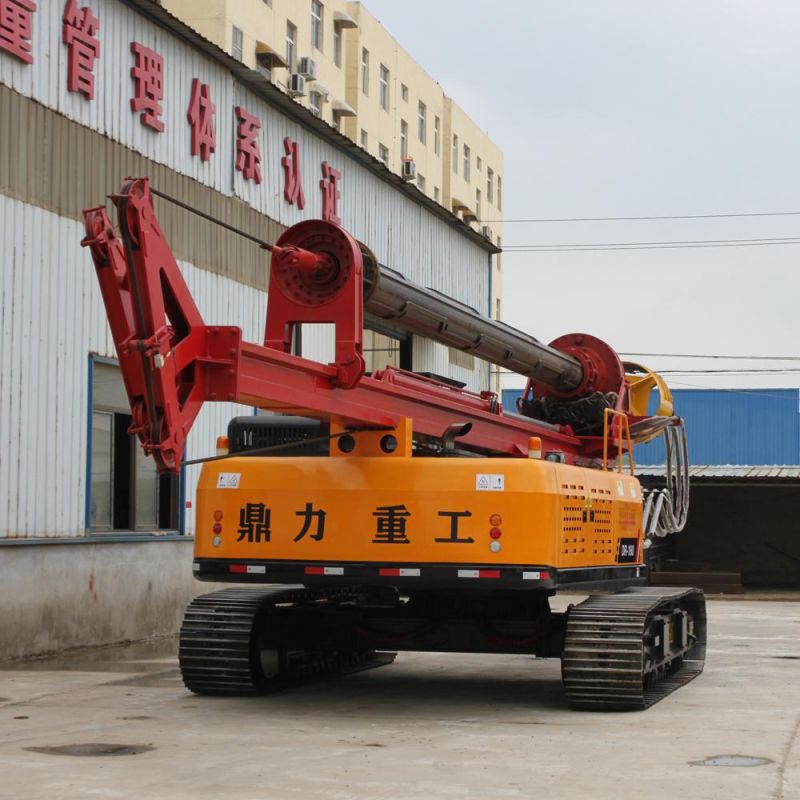

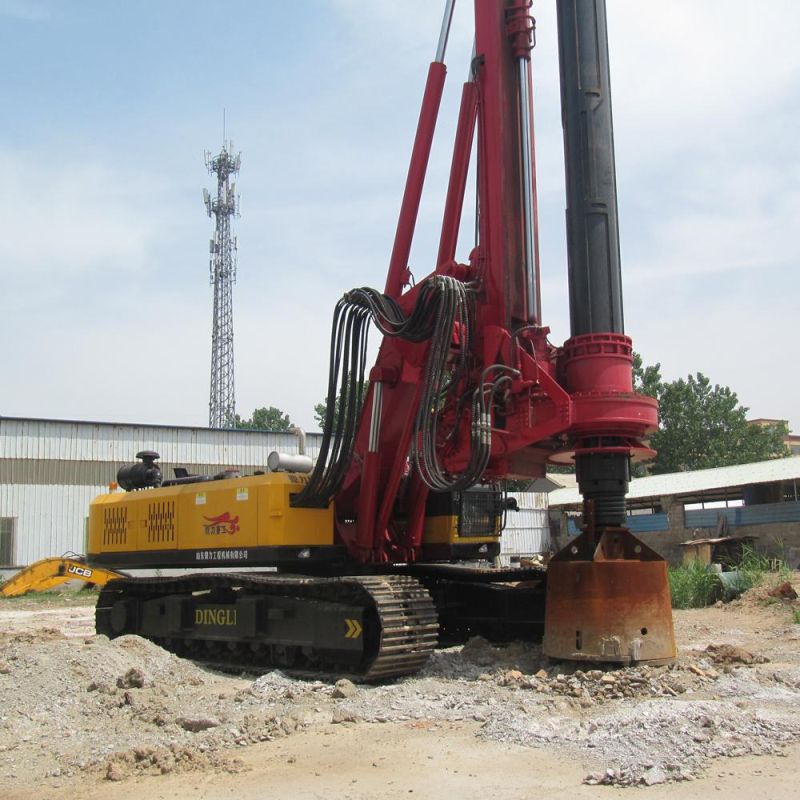

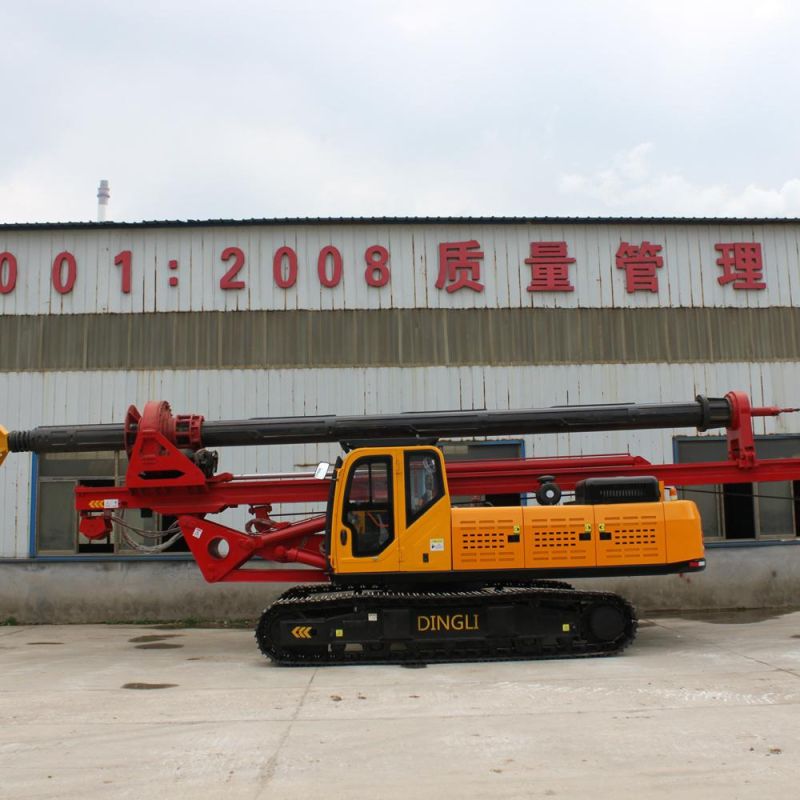

Product photo

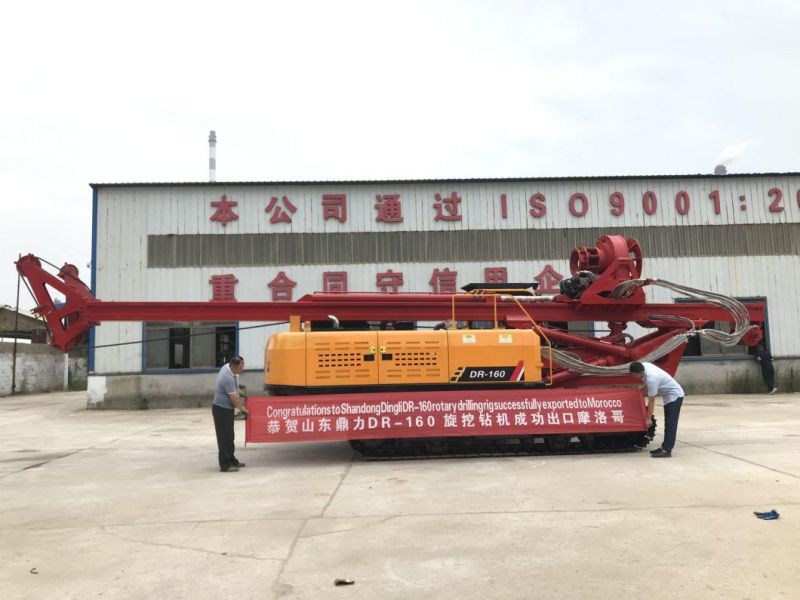

Shipping Photos








Certification




Our service


1.Pre-sale service:

1) DingLi will provide production design, quotation sheet, working sites video, machinery photos.  2) Welcome to visit us at any time, we will pick you up.

2. Sale service:

1) Keep clients updated when our company gets advance payment. 2) Confirm production details with clients. 3) Take photos and send all pictures to customers during production. 4) Inspection and testing the product before delivery;  5) Clients are welcome to inspect the equipment when the equipment are ready to delivery.  6) logistics service if needed.

3. After Sale service:

1) Provide foundation drawing to the clients for installation. 2) Besides, our engineers are available to help with installation and workers training. 3) Repairing and maintenance if any problem during the warranty.



Company profile

     Shandong Yahe Construction Machinery has been devoted to the development and improvement of rotary drilling rigs for many years, and has passed the CE certification of the European Union. It is widely used in the construction projects of urbanization, metro, viaduct, high-rise buildings, residential buildings and other fields. Rotary drilling rig is highly praised by customers at home and abroad for its high construction efficiency, energy saving, environmental protection and reliable performance. The equipment has been exported to more than 10 countries and regions overseas, such as Australia, Saudi Arabia, Myanmar, Bangladesh and Sudan, and has become a pile foundation facility serving global engineering construction and "new urbanization". Optimum equipment for engineering

Exhibition
  Transport


 FAQ

1.Q: Are you a manufacturer?

A: Yes, we are a professional rotary drilling rig  manufacturer.

2.Q: What does your company produce?

A: The main products of our company include rotary drilling rig.

3.Q: How about your delivery time?

A: Normally the delivery time is about 7-15 days. For some specialcase, we can make it within 2 weeks, it depends on different products.

4.Q: What methods of payment do you accept?

A: We accept T/T, L/C.

5.Q: Do you offer any deals or discounts?

A: Yes, price depends on different quantity, different quantity will give you different price
